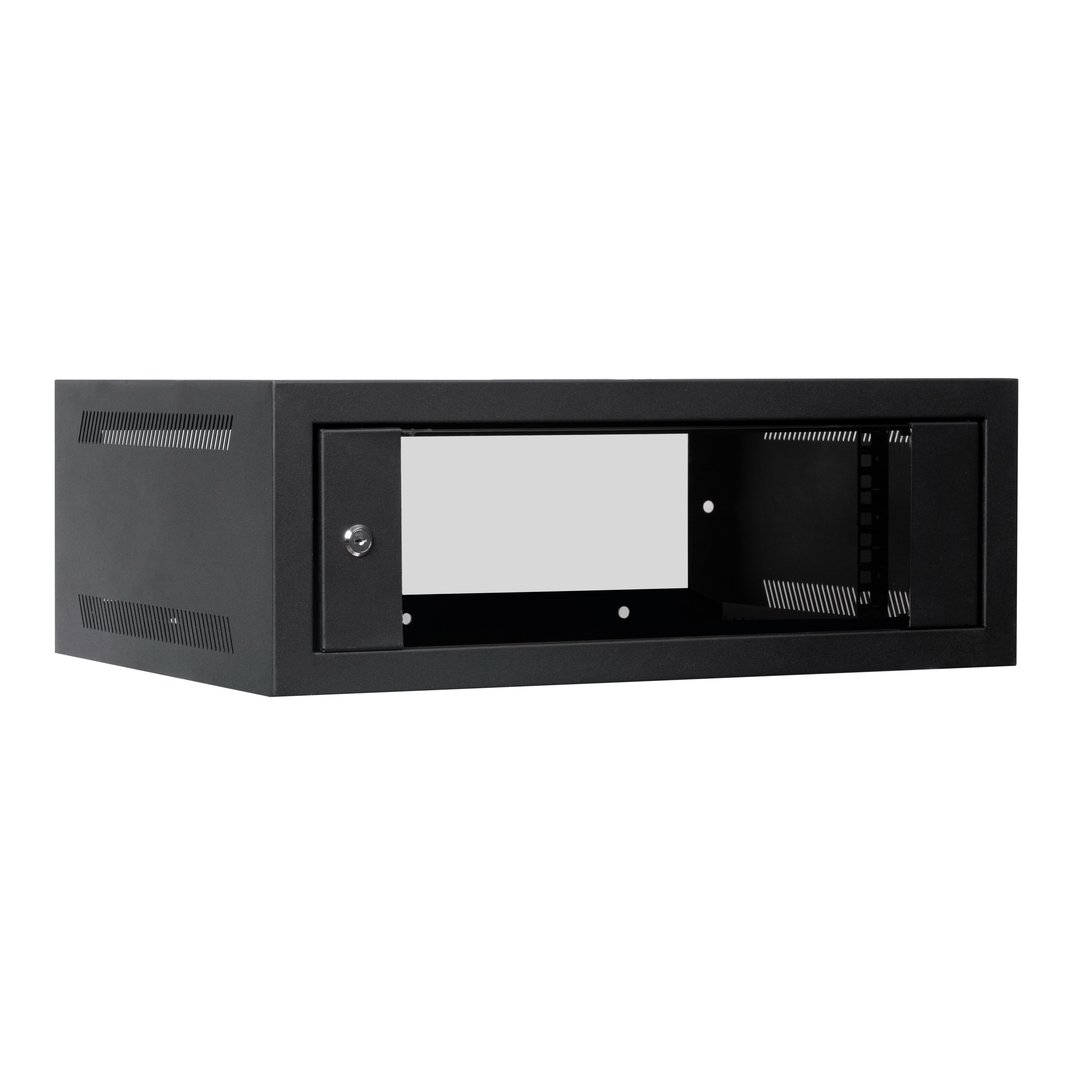

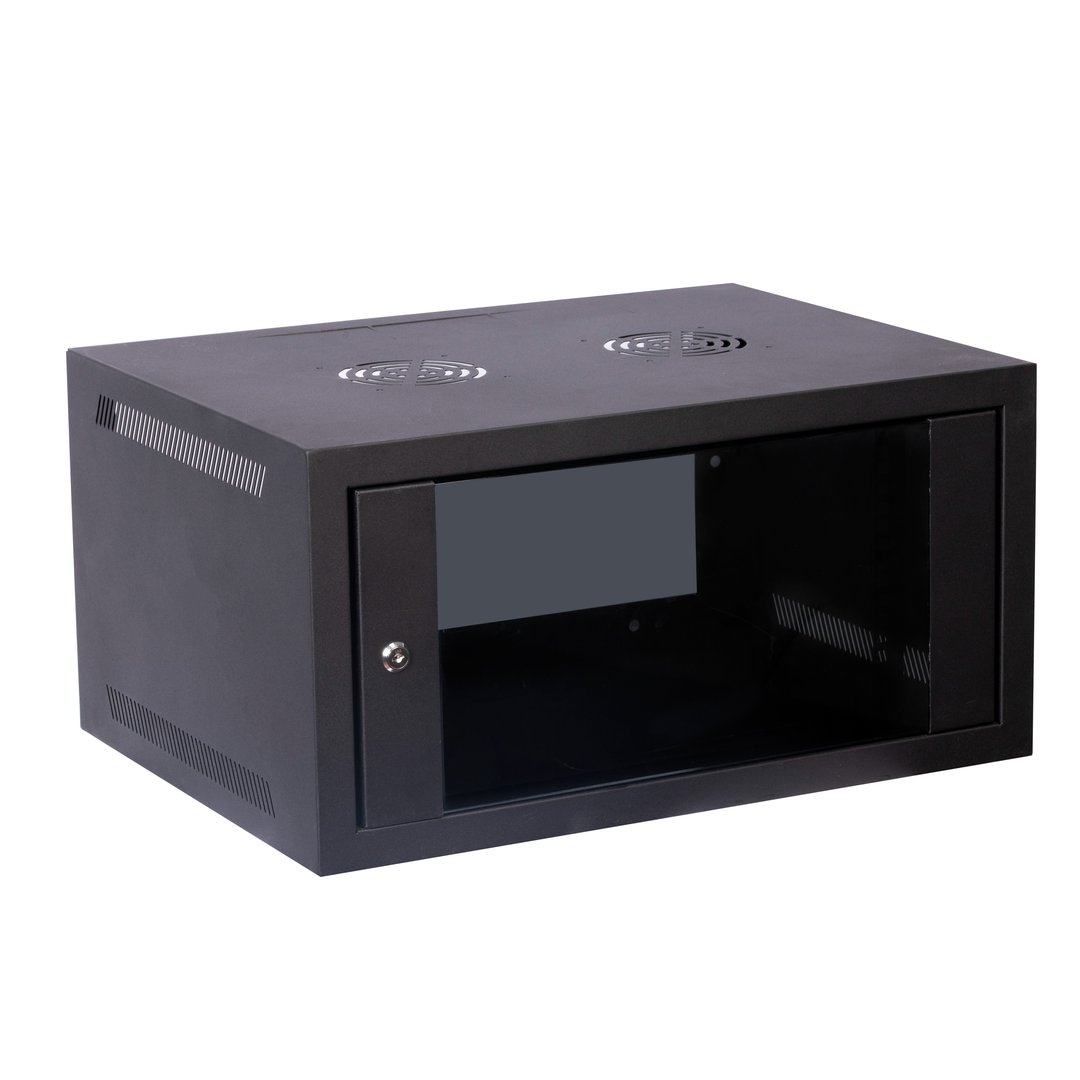

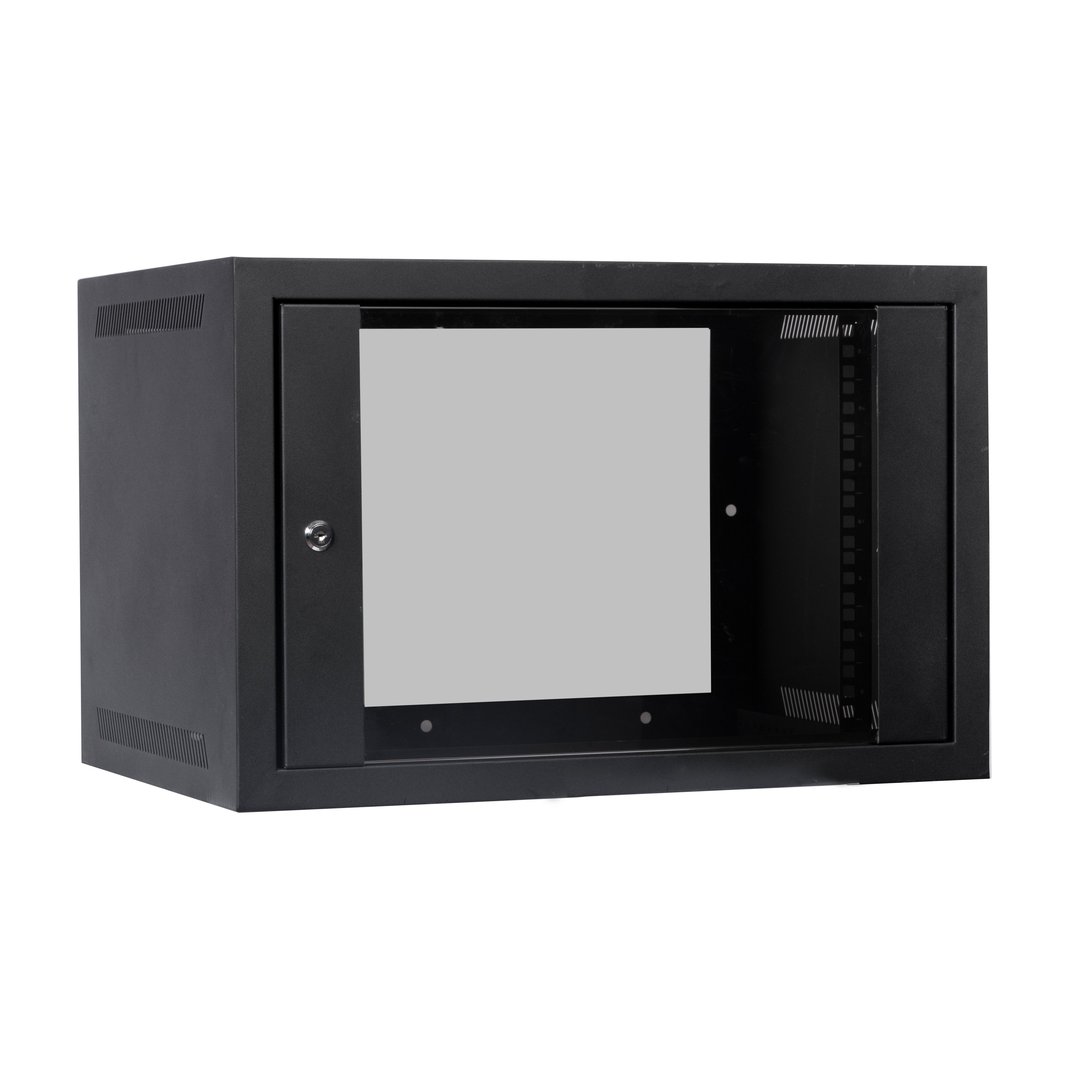

CB - 19” Wall mounted Racks

CB Wall mounted racks or Cabinets, though sounds broad, mainly refer to Wall mounted enclosures ranging from 3U to 22U, these are commonly available in 600mm width and depths of 450mm or 600mm.CB model contain EIA-310D compliant mounting profile, which are, including all other parts are 100% designed and manufactured in Sri Lanka, in a controlled ISO9001 certified process. The complete frame has welded. The frame for Server applications will allow loading in excess of 30kg without compromising safety.

Configurables	Option
Number of units	03U / 04U / 05U / 06U / 07U / 08U / 10U / 12U / 16U / 18U / 20U / 22U, Customizable
Width	600
Depth	450 / 600 mm
Front door	Glass / Blank Door
Door opening	swing left or Right (Standard)
Removable parts	Front door (tool-less)
Cable Entry	100mm x 50mm x 3 grouped knockout Glands, Top & Bottom
Body	Welded Unibody.
Main
Product name	CB
Product type	19" enclosure
Applications	To mount and protect Server or related equipment
Standard Colors	Black (RAL9005) White (RAL9003) Grey ( RAL7032 Or 7035 )
General specification
Installation mode	Wall mounted
Surface finish	Epoxy-polyester powder coat
Environment
IPdegree of protection	IP20 conforming to IEC60529
IK degree of protection	IK08 conforming to IEC62262
Standards	EIA-310D IEC60297-3-100
Country of Origin/Manufacture	Sri Lanka
