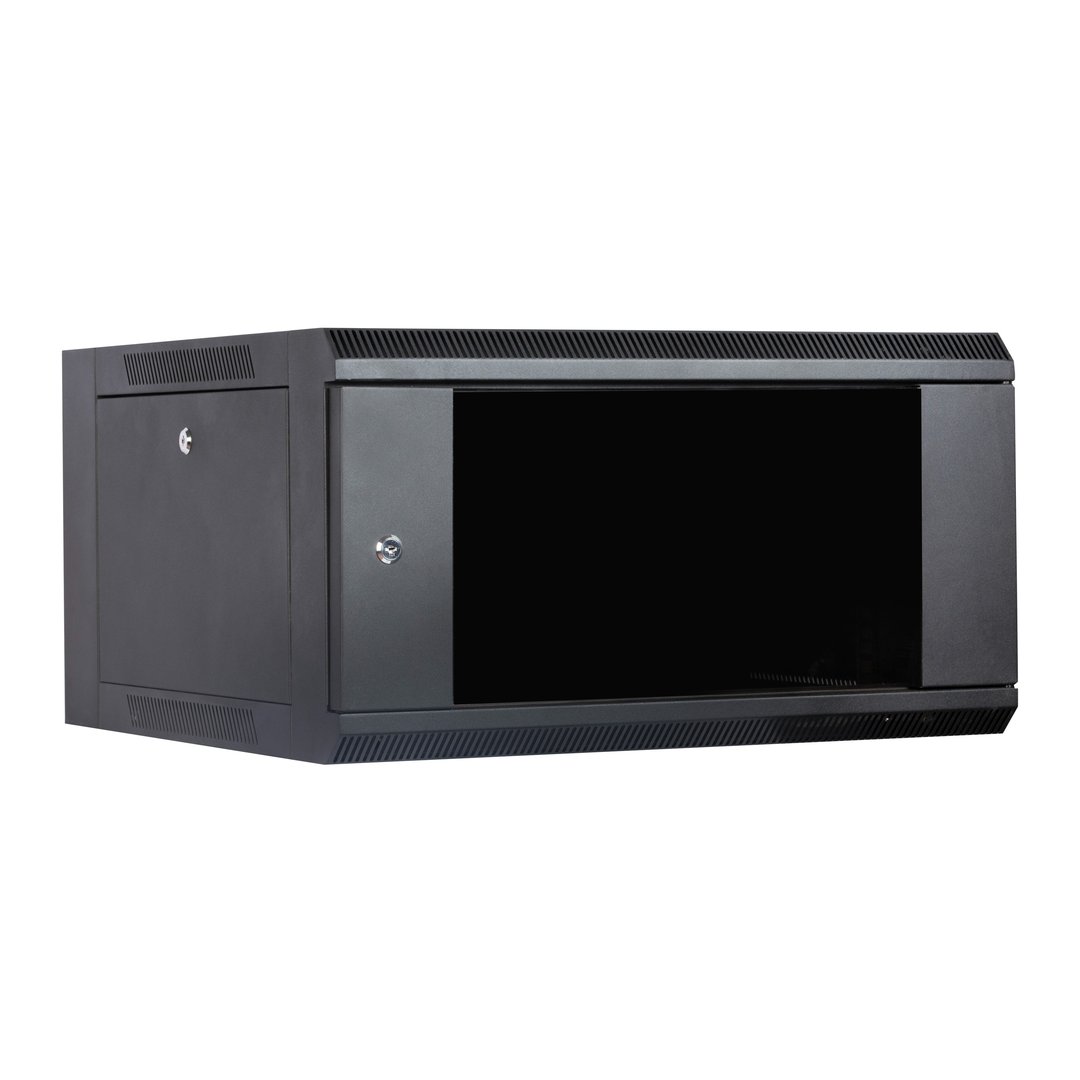

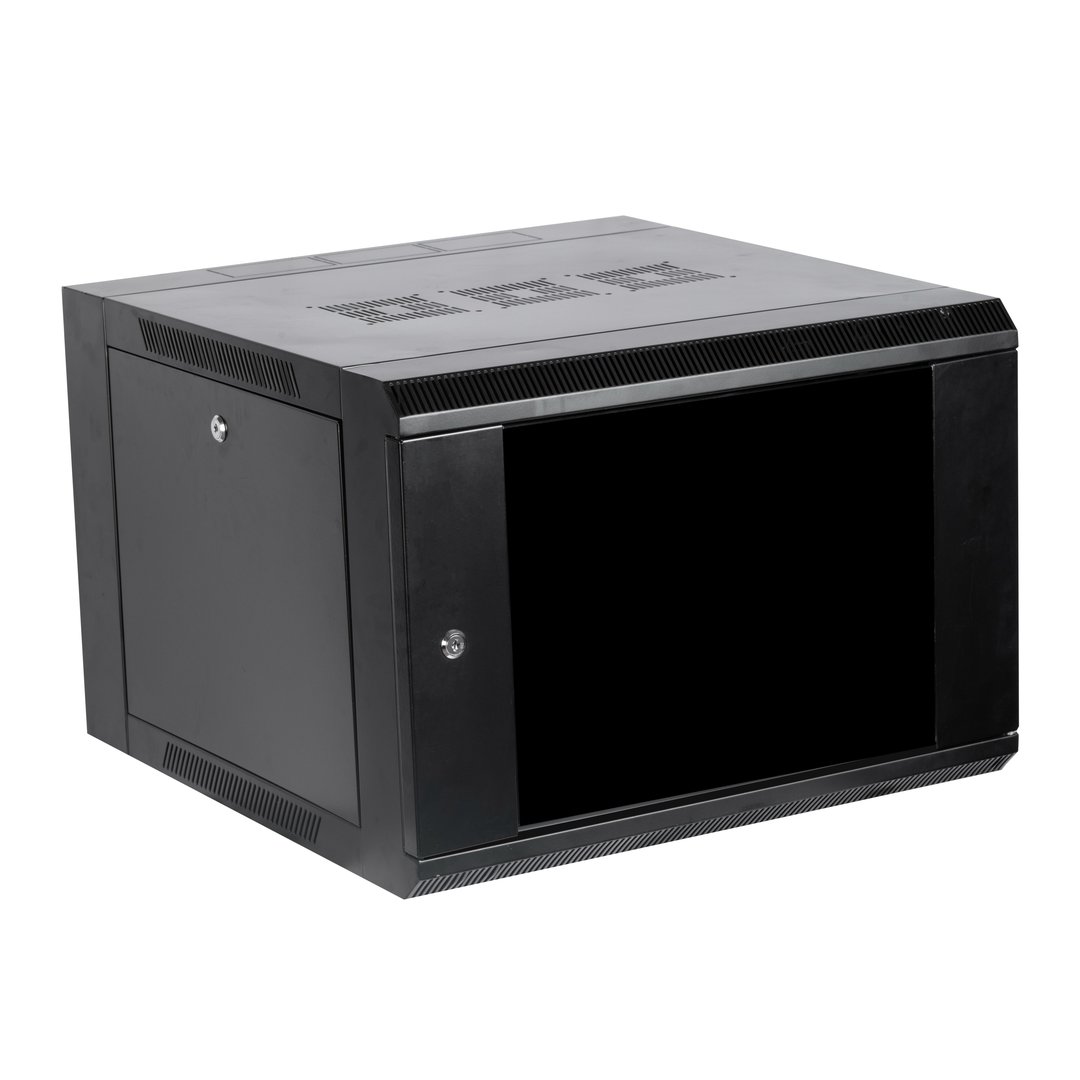

CH-R - 19” Premium Wall mounted Racks
CH-R Premium Wall mounted racks or Cabinets, though sounds broad, mainly refer to Wall mounted enclosures ranging from 3U to 22U, these are commonly available in 600mm width and depths of 450mm or 600mm.CH-R model contain EIA-310D compliant mounting profile, which are, including all other parts are 100% designed and manufactured in Sri Lanka, in a controlled ISO9001 certified process. The complete system can be dis-mantled using only a Screw Driver. The main frame has welded sub components to increase stiffness and rigidity. The frame for Server applications will allow loading in excess of 80kg without compromising safety.
The all new low profile design reduces internal volume there by allowing circulating air to escape the container without creating hot spots.
| Configurables | Option |
|---|---|
| Number of units | 03U / 04U / 05U / 06U / 07U / 08U / 10U / 12U / 16U / 18U / 20U / 22U, Customizable |
| Width | 600 |
| Depth | 450 / 600 mm |
| Front door | Glass / Mesh / Split Mesh / Blank Door |
| Door opening | 180° swing left or Right (Standard) |

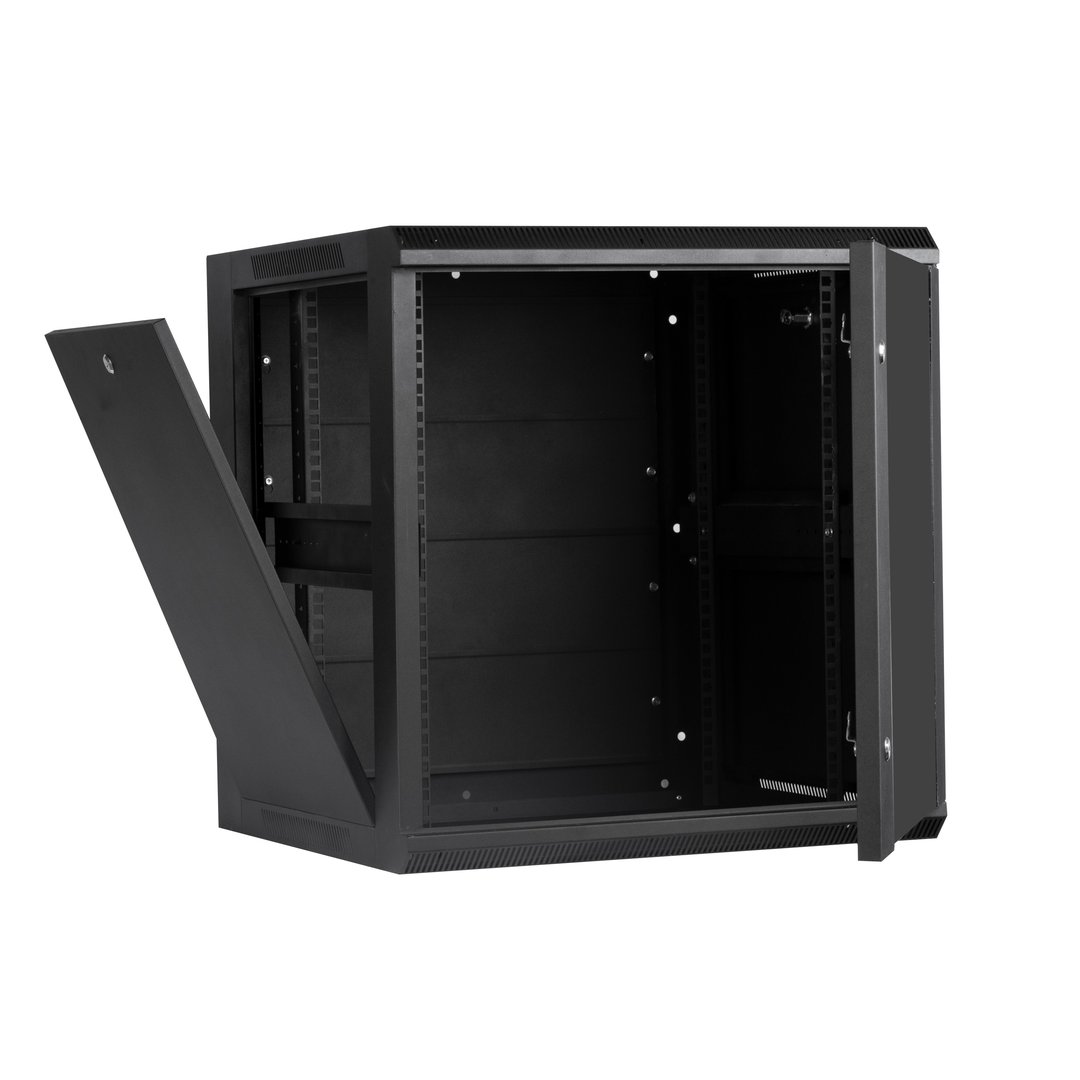

| Removable parts | Front door, side covers (tool-less) |
| Side Panels | Left & Right removable covers lockable |
| Cable Entry | 100mm x 50mm x 3 grouped knockout Glands, Top & Bottom |
| Construction | Screw Asssembled Construction |
| Main | |
| Brand | Sys Rack |
| Product name | Sys Rack CH-R |
| Product type | 19" enclosure |
| Applications | To mount and protect Server or related equipment |
| Standard Colors | Black (RAL9005) White (RAL9003) Grey ( RAL7032 Or 7035 ) |
| General specification | |
| Installation mode | Wall mounted |
| Surface finish | Epoxy-polyester powder coat |
| Environment | |
| IPdegree of protection | IP20 conforming to IEC60529 |
| IK degree of protection | IK08 conforming to IEC62262 |
| Standards | EIA-310D IEC60297-3-100 |
| Country of Origin/Manufacture | Sri Lanka |
Complete frame can be disassembled to parts that can be transported easily. For CH-R Series the frame work is from 1.0mm thick Carbon steel and adjustable railings are from 1.5mm thick carbon steel.
Please Select Your Item for More Information
| U Number | Width | Depth | Part Number |
|---|---|---|---|
| 03U | 600mm | 450mm | Sys Rsck CH-R 03604 |
| 03U | 600mm | 600mm | Sys Rsck CH-R 03606 |
| 04U | 600mm | 450mm | Sys Rsck CH-R 04604 |
| 04U | 600mm | 600mm | Sys Rsck CH-R 04606 |
| 05U | 600mm | 450mm | Sys Rsck CH-R 05604 |
| 05U | 600mm | 600mm | Sys Rsck CH-R 05606 |
| 06U | 600mm | 450mm | Sys Rsck CH-R 06604 |
| 06U | 600mm | 600mm | Sys Rsck CH-R 06606 |
| 07U | 600mm | 450mm | Sys Rsck CH-R 07604 |
| 07U | 600mm | 600mm | Sys Rsck CH-R 07606 |
| 08U | 600mm | 450mm | Sys Rsck CH-R 08604 |
| 08U | 600mm | 600mm | Sys Rsck CH-R 08606 |
| 10U | 600mm | 450mm | Sys Rsck CH-R 10604 |
| 10U | 600mm | 600mm | Sys Rsck CH-R 10606 |
| 12U | 600mm | 450mm | Sys Rsck CH-R 12604 |
| 12U | 600mm | 600mm | Sys Rsck CH-R 12606 |
| 16U | 600mm | 450mm | Sys Rsck CH-R 16604 |
| 16U | 600mm | 600mm | Sys Rsck CH-R 16606 |
| 18U | 600mm | 450mm | Sys Rsck CH-R 18604 |
| 18U | 600mm | 600mm | Sys Rsck CH-R 18606 |
| 20U | 600mm | 450mm | Sys Rsck CH-R 20604 |
| 20U | 600mm | 600mm | Sys Rsck CH-R 20606 |
| 22U | 600mm | 450mm | Sys Rsck CH-R 22604 |
| 22U | 600mm | 600mm | Sys Rsck CH-R 22606 |
