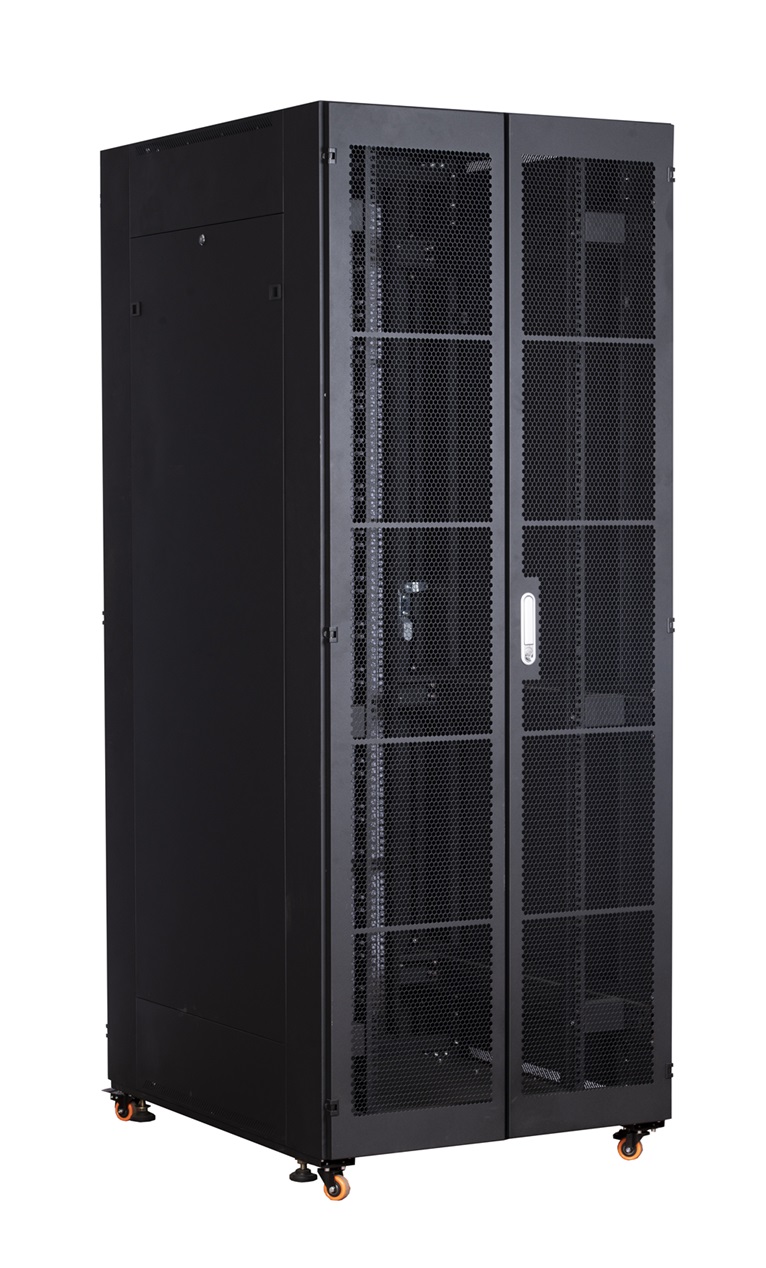

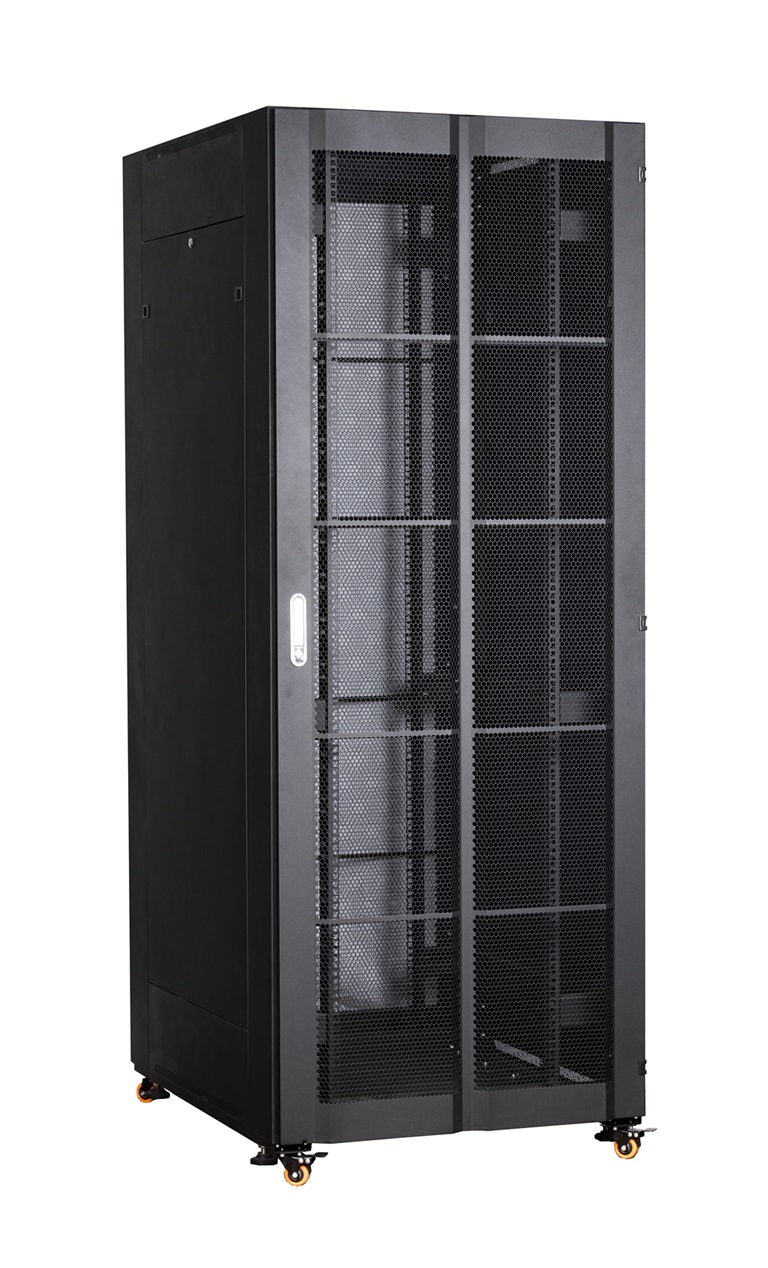

JH Premium Server Racks
JH Server Racks contain EIA-310D compliant mounting profile, which are, including all other parts are 100% designed and manufactured in Sri Lanka, in a controlled ISO9001 certified process. The complete system can be dis-mantled using only a Screw Driver. The main frame has welded sub components to increase stiffness and rigidity. The heavy duty frame for Server applications will allow loading in excess of 2000kg without compromising safety.
The all new low profile design reduces internal volume there by allowing circulating air to escape the container without creating hot spots.
| Configurables | Option |
|---|---|
| Number of units | 22U / 28U / 30U / 32U / 36U / 38U / 40U / 42U / 48U, Customizable |
| Width | 600 / 800 mm |
| Depth | 600 / 800 / 1000 / 1200 mm |
| Front door | Glass / Mesh / Split Mesh / Blank Door |
| Back door | Glass / Mesh / Split Mesh / Blank Door |
| Door opening | 180° swing left or Right (Standard) |
| Removable parts | Front door, Back Door, side covers (tool-less) |
| Safety | All tool-less removable covers lockable |
| Cable Entry | 100mm x 50mm x 3 grouped knockout Glands, Top & Bottom, Front and Back |
| Construction | Screw Asssembled Construction |
| Movability | Four 2" Caster wheels with brakes on front two |
| Leveling system | Four leveling feet's with lock nuts |
| Main | |
| Brand | Sys Rack |
| Product name | Sys Rack JH |
| Product type | 19" enclosure |
| Applications | To mount and protect Server or related equipment |
| Standard Colors | Black (RAL9005) White (RAL9003) Grey ( RAL7032 Or 7035 ) |
| General specification | |
| Installation mode | Freestanding |
| Surface finish | Epoxy-polyester powder coat |
| Environment | |
| IPdegree of protection | IP20 conforming to IEC60529 |
| IK degree of protection | IK08 conforming to IEC62262 |
| Standards | EIA-310D IEC60297-3-100 |
| Country of Origin/Manufacture | Sri Lanka |

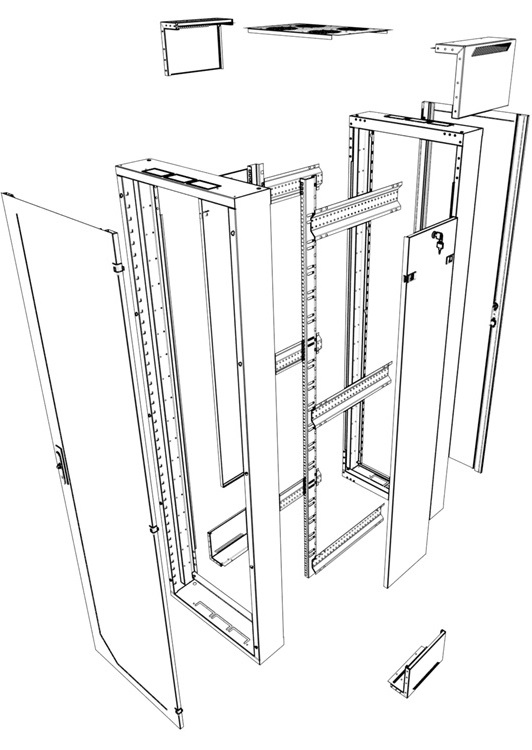

Complete frame can be disassembled to parts that can be transported easily. For JH series the frame work is from 1.5mm thick Carbon steel and adjustable railings are from 2.0mm thick carbon steel.
