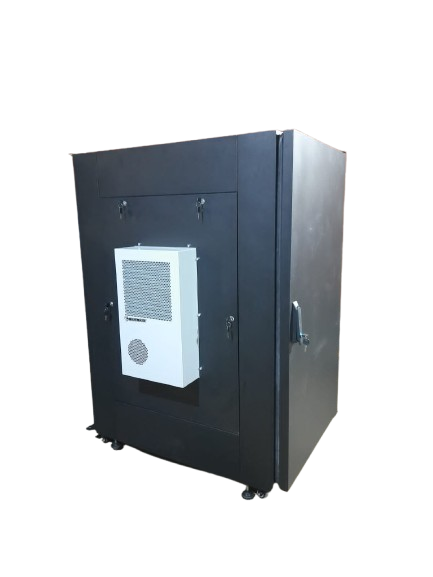

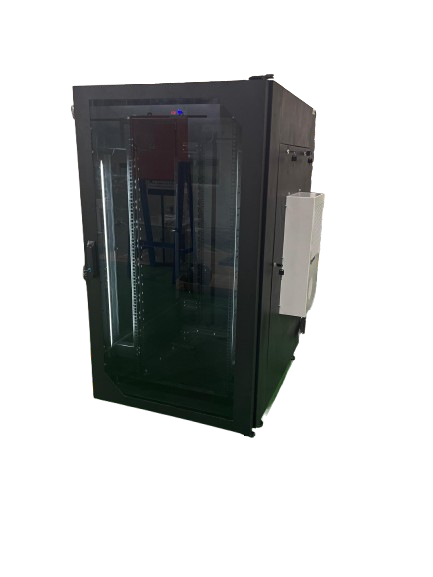

Smart Rack

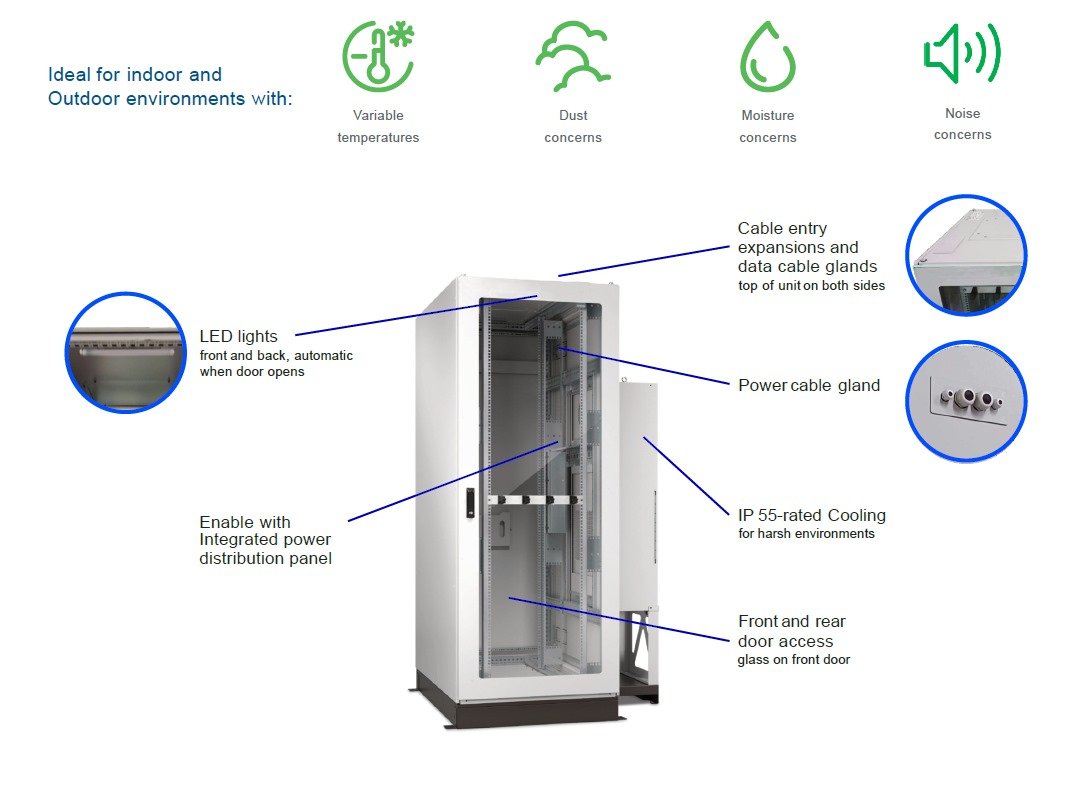

Industrial Internet of Things (IIoT) and Industry 4.0 transformations mean that critical IT and OT equipment is moving closer to where it’s used. That’s why cubicoan has expanded its line of Micro Data Centers to include IP rated enclosures for indoor and out door environments in commercial and industrial applications. Plug-and-play solution, simple-to-deploy, simple-to-manage solution – designed to leverage existing space.
Secure Digitally And Physically
• IP55 rating for dust and water protection in industrial environments
• 24/7 high sensible cooling for harsh environments
| Configurables | Option |
|---|---|
| Number of units | 22U / 28U / 30U / 32U / 36U / 38U / 40U / 42U / 48U, Customizable |
| Width | 600 / 800 mm |
| Depth | 800 / 1000 / 1200 mm |
| Front door | Glass / Mesh / Split Mesh / Blank Door |
| Back door | Glass / Mesh / Split Mesh / Blank Door |
| Door opening | 180° swing left or Right (Standard) |
| Removable parts | Front door, Back Door, side covers (tool-less) |
| Safety | All tool-less removable covers lockable |
| Cable Entry | 100mm x 50mm x 3 grouped knockout Glands, Top & Bottom, Front and Back |
| Construction | Screw Assembled Construction |
| Movability | Four 2" Caster wheels with brakes on front two |
| Leveling system | Four leveling feet's with lock nuts |
| Main | |
| Brand | Sys Rack |
| Product name | Sys Rack JH-L |
| Product type | 19" enclosure |
| Applications | To mount and protect Server or related equipment |
| Standard Colors | Black (RAL9005) White (RAL9003) Grey (RAL7032 Or 7035) |
| General specification | |
| Installation mode | Freestanding |
| Surface finish | Epoxy-polyester powder coat |
| Chiller Unit | |
| Brand Name | Coolnet |
| Voltage | 500V / 1000V / 1500V / 3500V |
| Environment | |
| IP degree of protection | IP20 conforming to IEC60529 |
| IK degree of protection | IK08 conforming to IEC62262 |
| Standards | EIA-310D IEC60297-3-100 |
| Country of Origin/Manufacture | Sri Lanka |
Benefit of Smart Rack
• Emits sound alerts for temperature fluctuations or equipment failures, enabling quick responses to issues.
• Increases awareness of critical situations in noisy environments where visual alerts may be missed.
• Can be programmed to signal routine maintenance checks, ensuring proactive upkeep.
• Allows for precise regulation of temperature within the rack, optimizing performance.
• Automatically adjusts cooling based on real-time temperature readings, improving efficiency.
• Provides a visual overview of current temperature, humidity, and operational status, facilitating quick assessments.
• Allows for analysis of temperature trends over time, aiding in predictive maintenance and planning.
• Simplifies monitoring and management tasks, enabling easier operation for staff.
• Together, these components help maintain optimal operating conditions, reducing the risk of equipment failure.
• Improved energy efficiency and reduced downtime translate into significant cost reductions.
