Cable Management System

Cable Management System provides completely integrated rigid support for electrical cables, such as high voltage lines, power distribution cables, control wiring, varied telecommunication cables, electrical continuity, continuous support, positive radius control, protection against physical damage, ease of installation, engineered performance etc. It is a safe, versatile and cost-effective way to carry large numbers of wires over considerable distances between their points of origin and termination. It provides shelter from sunlight and accumulation of dirt. They not only guard against damage to and accidental contact with cables but also help to isolate cables from fire and radio frequency interference. And we specialized for all of Cable tray, Cable trunking and Cable ladder. Full range of colours, matching of colour to interior of building is possible. Any size is possible and fabrication before Powder coating ensures maximum corrosion resistance. Though not as resilient as Hot-dipped galvanized products, these can be fabricated in thin metal so that price-to-performance is greatly increased. The Powder coating process so inert that variety of base metals can be used, such as Aluminum or Stainless-steel, etc.

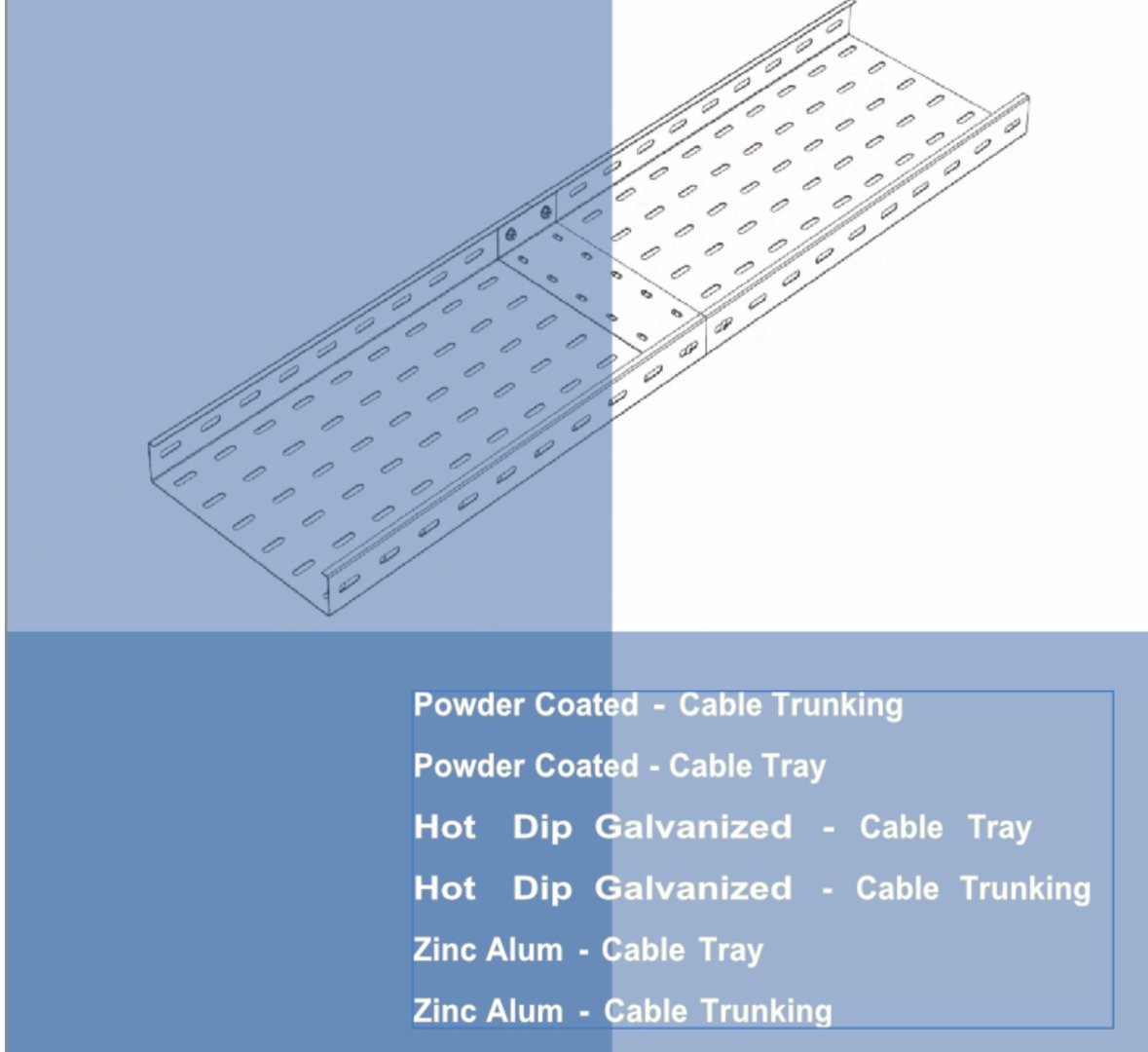

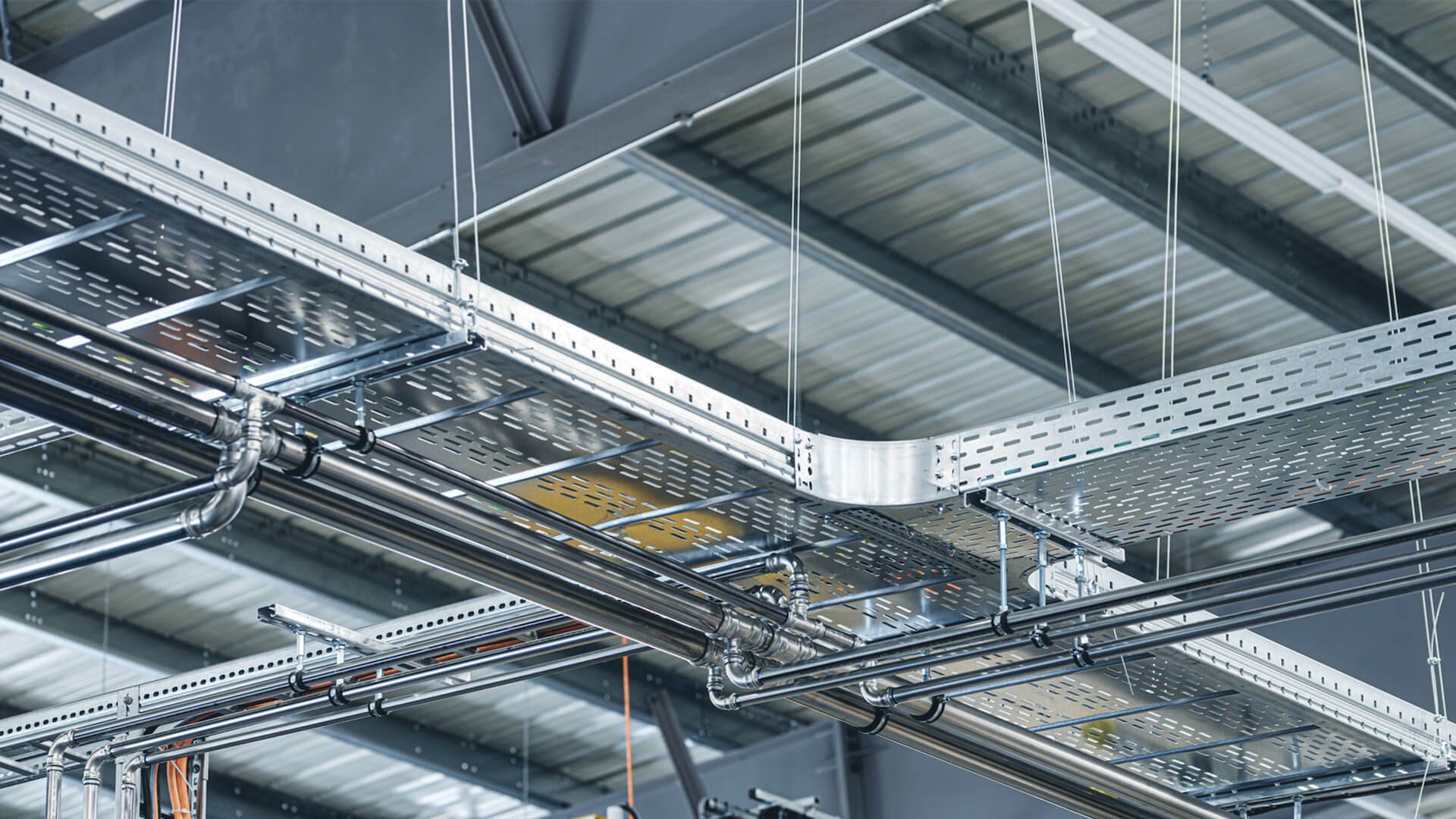

Cable Trays

Constructed from single sheet of perforated metal. They are convenient for cables which require both a degree of protection from external damage and some ventilation.

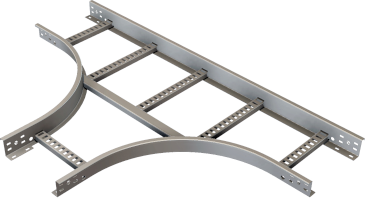

Cable Ladders

Straight sections of ladder type cable trays consist of two longitudinal side rails, connected by individual transverse members, or rungs, which are welded to the side rails or bolted in case of GI trays. This type of cable tray provides maximum ventilation to heat-producing cable such as power cables.

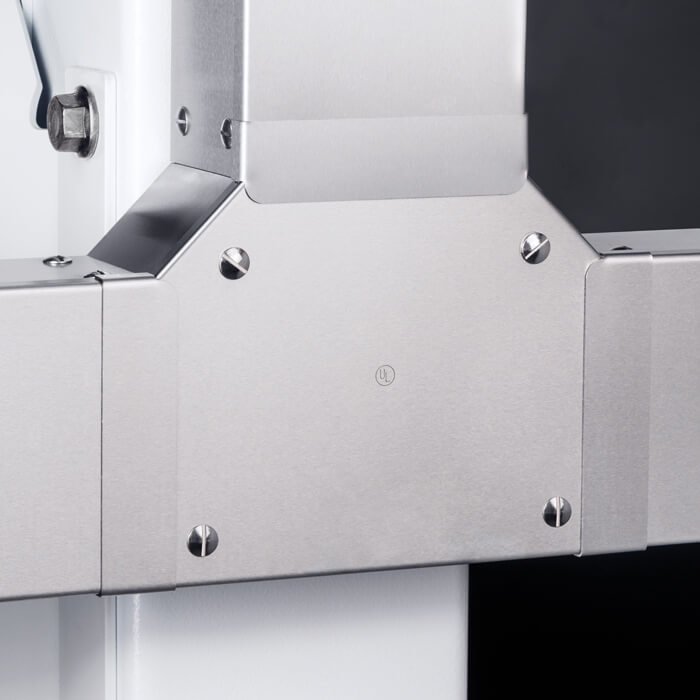

Cable Trunking

Straight sections of solid bottom cable trays constructed from a single sheet of metal, providing excellent protection from external damage. They are used primarily for instrumental control, communication and other non-heat producing cables.

Advantages of Cable Tray

• Open design allows for good air circulation, which helps dissipate heat.

• Easy to access cables for maintenance or upgrades.

• Can accommodate various cable types and sizes, making it versatile for different installations.

• Typically made from robust materials, offering long-term reliability.

• Often less expensive than enclosed systems while still providing adequate support and protection.

Advantages of Cable Trunking

• Enclosed design protects cables from dust, moisture, and physical damage.

• Provides a cleaner, more organized appearance for cable management.

• Many trunking systems are designed to be fire-resistant.

• Generally easier to install and modify than conduit systems.

• Can separate different types of cables to reduce interference and improve safety.

Advantages of Cable Ladder

• High load-bearing capability makes it suitable for heavy and bulky cables.

• Promotes excellent airflow, reducing heat buildup in larger cable installations.

• Allows for complex cable routing and is easy to adapt to different configurations.

• Easy to access cables for inspections and repairs without disrupting the entire system.

• Often made from steel or aluminum, providing long-lasting strength and resistance to environmental factors.
